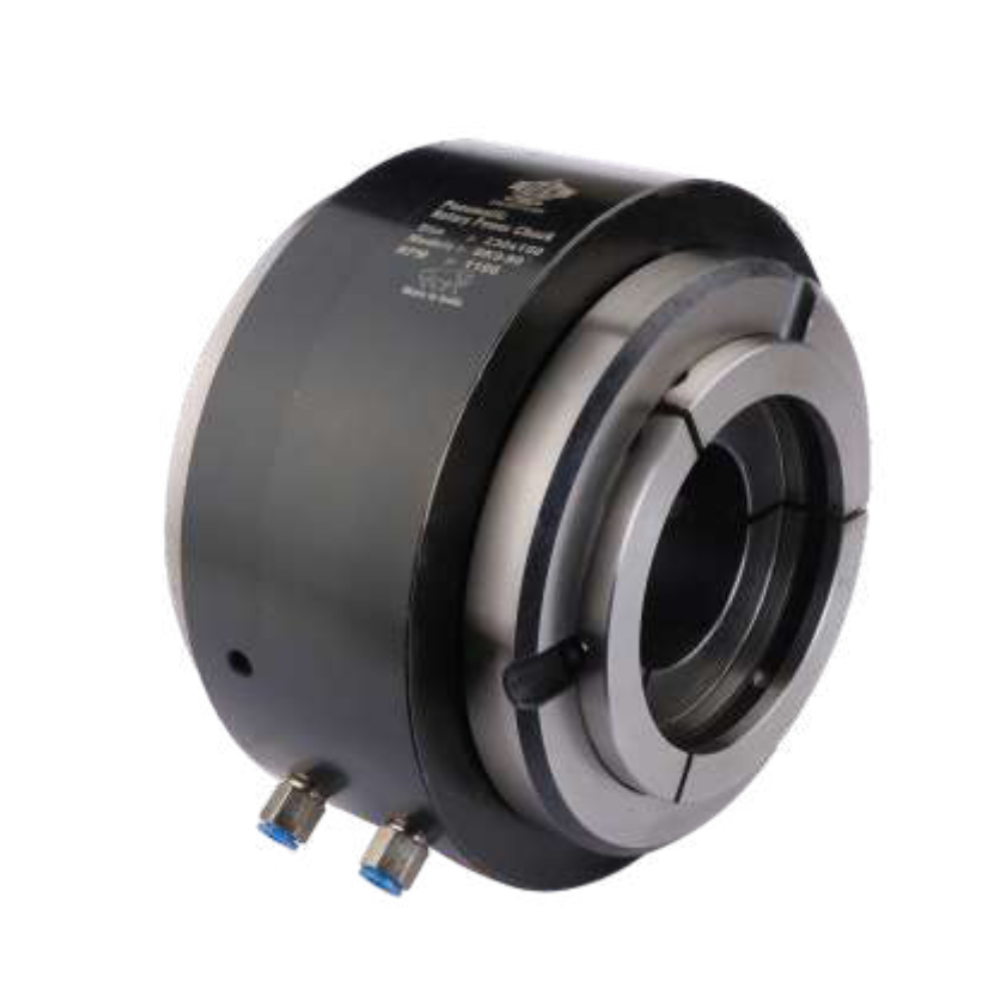

2-Jaw Power Chuck

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

2-Jaw Power Chuck · DK Series

Key Features

Built in rotary cylinder
No draw tube required
No rotary cylinder required
Extra large piston
Provide high clamping force
Center through hole
Facility auto feeding
Solution for manual lathe into automation
No fluid direct to the chuck body

Technical Specifications

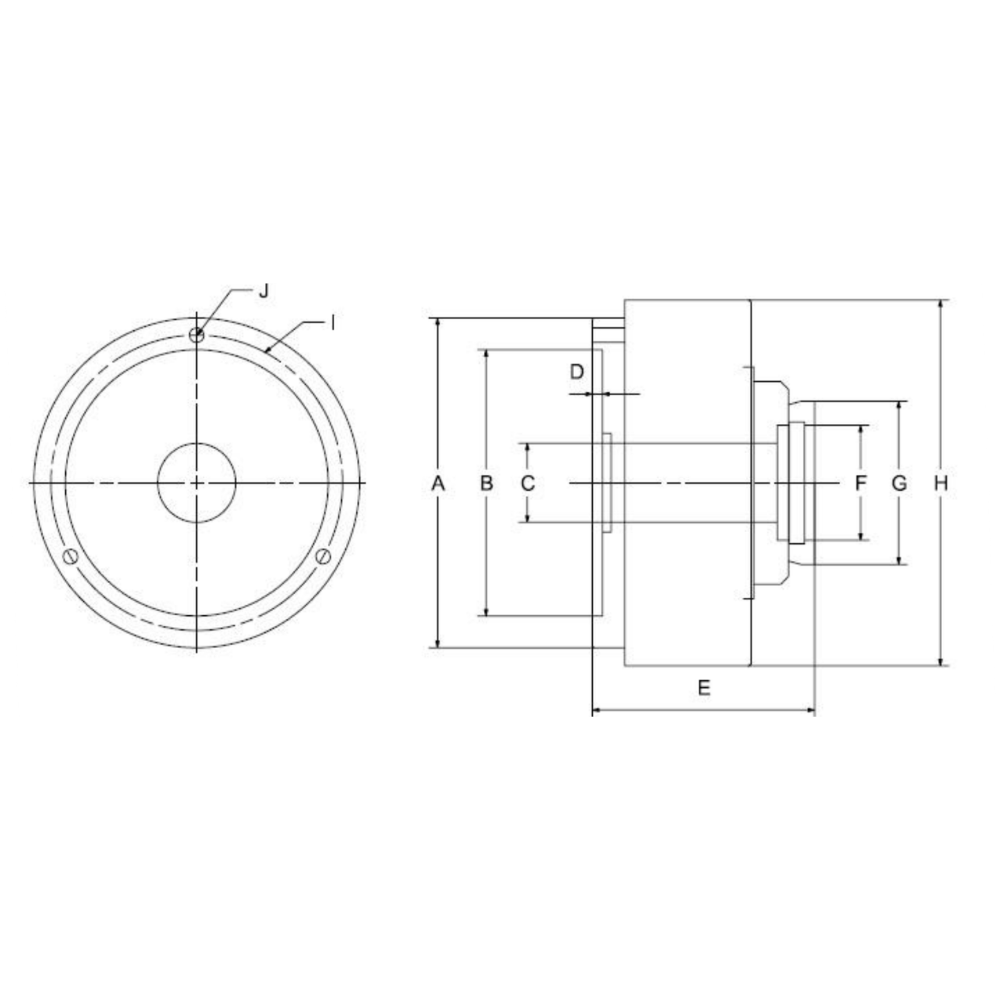

Model	DK15-25	DK17-45	DK17-65	DK19-90
A	135 (5.31")	192 (7.56")	192 (7.56")	230 (9.06")
B	100 (3.94")	133 (5.20")	155 (6.10")	190 (7.48")
C	27 (1.06")	47 (1.85")	69 (2.70")	88 (3.45")
D	4 (0.16")	5 (0.20")	5 (0.20")	6 (0.24")
E	105 (4.13")	128 (5.04")	142 (5.58")	150 (5.91")
F	45 (1.77")	65 (2.56")	105 (4.11")	105 (4.11")
G	68 (2.68")	94 (3.70")	166 (6.55")	196 (7.72")
H	170 (6.69")	212 (8.35")	266 (10.47")	252 (9.93")
(PC.D.)	115 (4.53")	172 (6.77")	172 (6.77")	210 (8.27")
I	314 M8xP1.25	314 M10xP1.5	314 M10xP1.5	314 M12xP1.75
Collet/Jaw	C-25 jaw	C-45 jaw	C-65 jaw	C-90 jaw
Air/Hydro	Air	Air	Air	Air
Operating Pressure	2-9 kg/cm² (28-130 psi)	2-9 kg/cm² (28-130 psi)	2-9 kg/cm² (28-130 psi)	10-15 kg/cm² (145-214 psi)
Max. RPM	1800	1600	1400	1100
Capacity	25mm / 30mm (0.98" / 1.26")	45mm / 50mm (1.77" / 1.97")	68mm / 90mm (2.68" / 3.54")	86mm / 90mm (3.52" / 3.52")
Piston Area	115 cm² (17.8 in²)	182 cm² (28.2 in²)	328 cm² (50.8 in²)	328 cm² (50.8 in²)
Clamp Force	225 kgf (4.4 kgf/cm²)	351 kgf (6.9 kgf/cm²)	642 kgf/cm² (125.8 kgf/cm²)	642 kgf/cm² (125.8 kgf/cm²)
Weight	8.0 kg (17.6 lbs)	16.0 kg (35.3 lbs)	23.0 kg (50.5 lbs)	23.0 kg (50.5 lbs)
