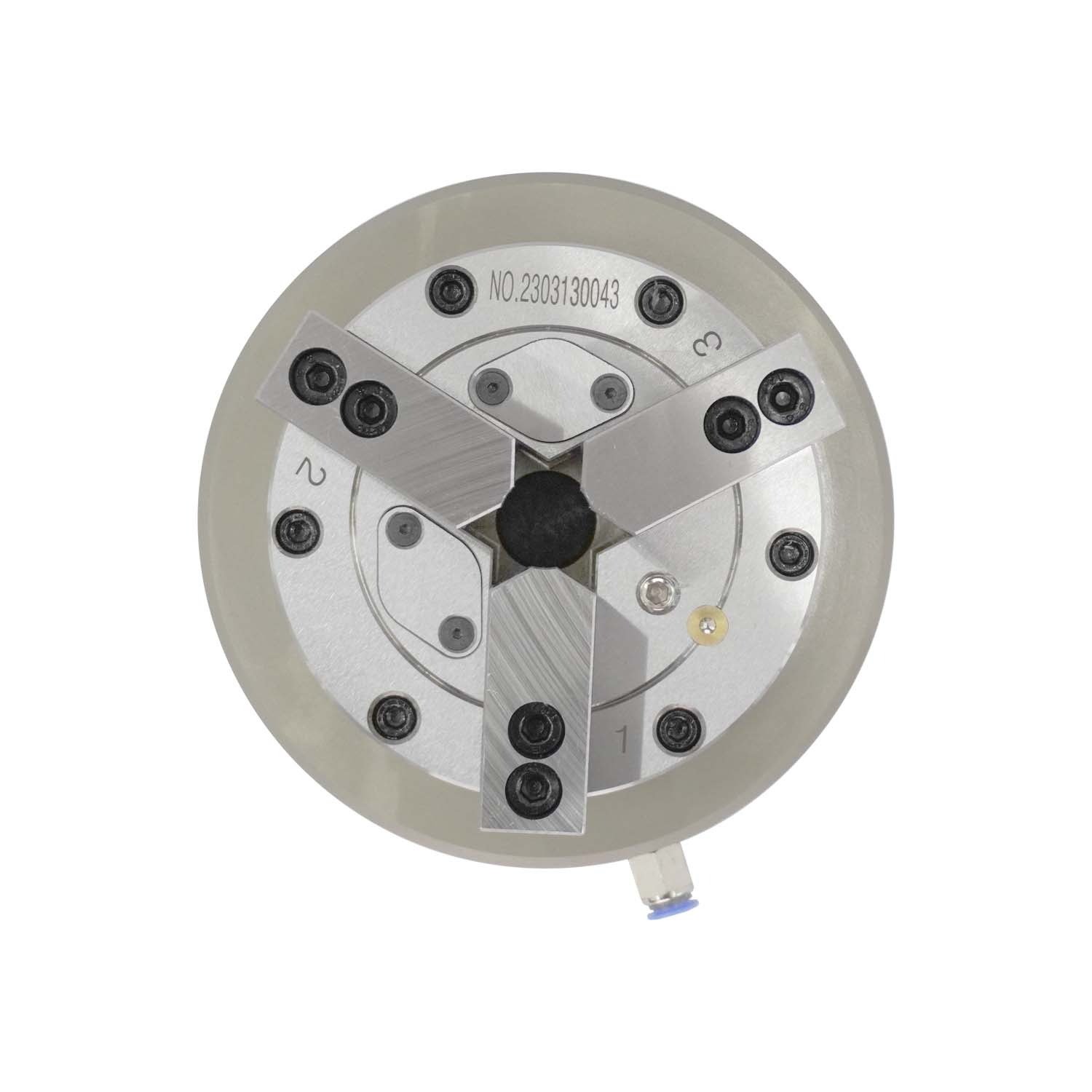

Pneumatic power chucks from the perfect alternative if the chuck is not to be actuated manually or via hydraulics. The chucks have an integrated pneumatic cylinder, via which the chuck can be actuated in the event of a shutdown. The power lathe chucks have an extremely large chuck bore, which is perfect for machining large, long pipes.
Precision wedge hook pneumatic chuck for top quality demandsLarge through-holeOptimized lubrication systemPneumatic cylinder integrated in the chuckHigh clamping forces at system pressure| Model | Jaw Stroke t (Diameter) | Max. gripping force (kN) | Max. bracing force (kN) | Allowable pressure (Mpa) | Limited rotating speed (r/min) | Clamping range | Bracing range | Net weight (kg) |
|---|---|---|---|---|---|---|---|---|
| DK130-05” | 3.7 | 20.4 | 10.3 | 0.4~0.8 | 3000 | 2-130 | 10-140 | 15 |
| DK160-06” | 4.2 | 31.5 | 14.9 | 0.4~0.8 | 2300 | 2-170 | 20-180 | 20 |
| DK200-08” | 4.5 | 46.7 | 24.2 | 0.4~0.8 | 1850 | 5-210 | 20-240 | 36 |
| DK250-10” | 5.4 | 62.4 | 32.6 | 0.4~0.8 | 1500 | 10-260 | 30-280 | 50 |
| Model | D | D1 | D2 | d | H | H1 | H2 | h | Z x d |
|---|---|---|---|---|---|---|---|---|---|
| DK130-05” | 135 | 95 | 108 | 25 | 133 | 101.5 | 6.5 | 5 | 3-M8 |
| DK160-06” | 175 | 130 | 142 | 35 | 143 | 107 | 4.5 | 5 | 3-M8 |
| DK200-08” | 214 | 165 | 180 | 52 | 155 | 115 | 10 | 5 | 3-M10 |
| DK250-10” | 256 | 206 | 226 | 80 | 166 | 122 | 14.5 | 5 | 3-M12 |
