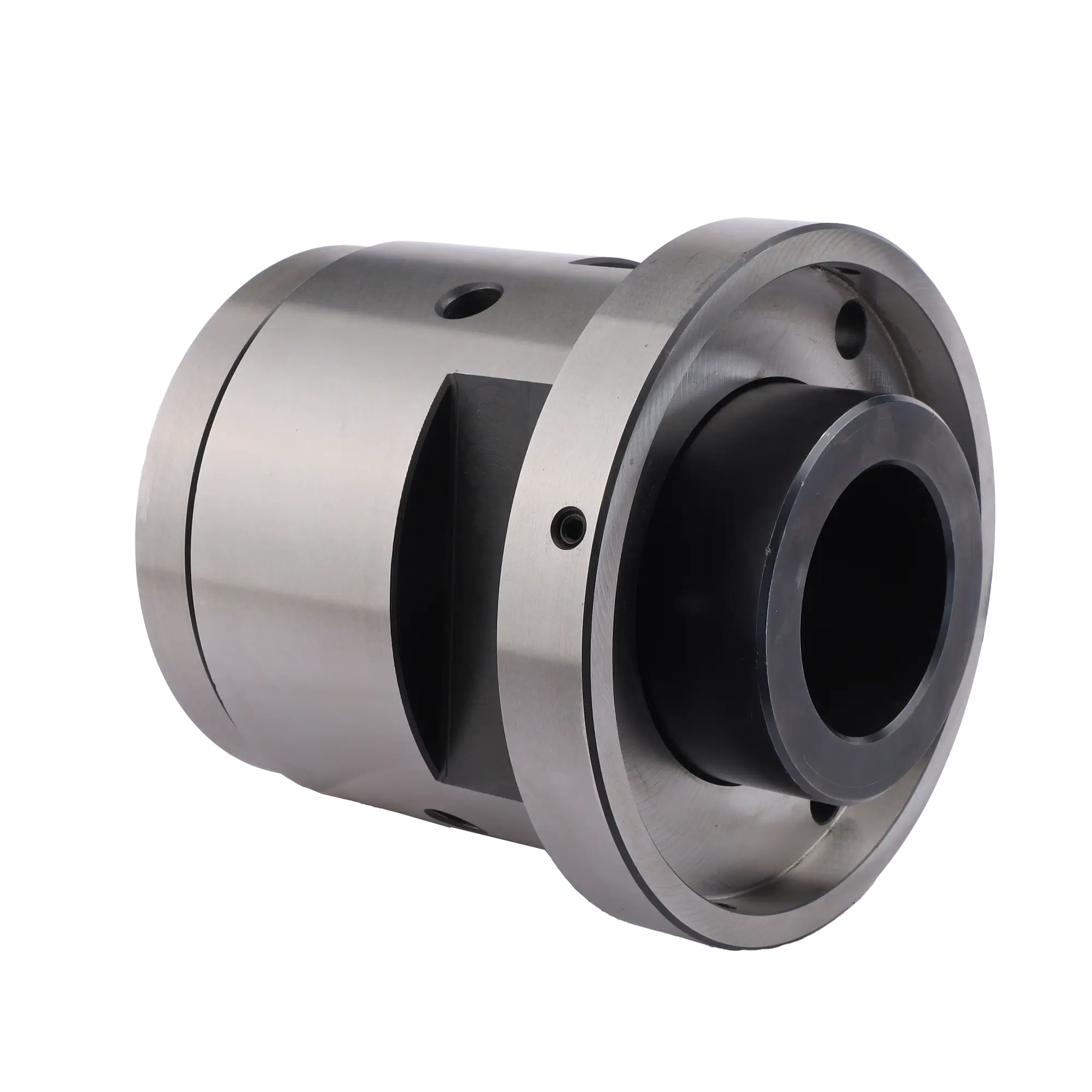

CNC machine collet chucks are essential tools in the precision machining industry, providing the necessary grip and accuracy required for various CNC machining processes. The choice of collet chuck type and proper maintenance play a significant role in achieving high-quality results in CNC machining operations. User Friendly Installation, Higher precise and easier operations.
| Model | A-25 | A-42 | A-60 | A-80 |
|---|---|---|---|---|
| Installation from | A2-4 | A2-5 | A2-6 | A2-8 |
| A | 100 | 110 | 135 | 190 |
| B | 130 | 165 | 168 | 220 |
| C | 80 | 111 | 117 | 138 |
| D | 20 | 25 | 25 | 31 |
| E | 110 | 130 | 150 | 180 |
| F | 55 | 72 | 92 | 95 |
| G | 36×1.5 | 60×2 | 80×2 | 90×2 |
| H | 100 | 136 | 142 | 169 |
| I | 3-M10 | 3-M10 | 3-M12 | 3-M12 |
| J | 95 | 110 | 133.4 | 160 |
| K | 25 | 42 | 60 | 80 |
| Collet Model | A-25 | A-42 | A-60 | A-80 |
| Sleeve Axial Stroke | 5 mm | 5 mm | 5 mm | 5 mm |
| Max. Capacity | 25 mm | 42 mm | 60 mm | 80 mm |
| Max. Pull Force | 2400 kgf (5280 lbf) | 2400 kgf (5280 lbf) | 3000 kgf (6600 lbf) | 3300 kgf (7260 lbf) |
| Max.Gripping Force | 4200 kgf (9240 lbf) | 4200 kgf (9240 lbf) | 5250 kgf (11550 lbf) | 5775 kgf (12705 lbf) |
| Max.Speed(RPM/Min.) | 7000 | 6000 | 5000 | 4000 |
| Net Weight | 7.5 kg | 11.5 kg | 17.5 kg | 22.5 kg |
Precision-engineered CNC & VMC machine toolings and accessories designed for reliable performance, accurate machining, and efficient industrial operations.
A jig’s primary purpose is to provide repeatability, accuracy, and interchange ability in the manufacturing of products. A jig is often confused with a fixture.
We make multi Head Spindle for the purpose of more than one hole at single operation at different P.C.D. as per your requirements with grease or oil.
The surface of metal parts worked through turning, reaming or boring operations is a succession of “PROJECTION or PEAKS” and “INDENTATION or VALLEY” when microscopically examined (see fig. 1).
The VMC Machine Spindle Cartridge is a precision belt-driven spindle unit designed for reliable and accurate machining performance. With spindle nose accuracy strictly maintained below 0.007 mm, it supports a wide range of machining operations.
The CNC Machine Spindle Cartridge is engineered for high precision, reliable performance, and long service life in CNC machining applications. Precision-ground components, high-accuracy bearings, and special lubrication ensure smooth and consistent spindle operation.
